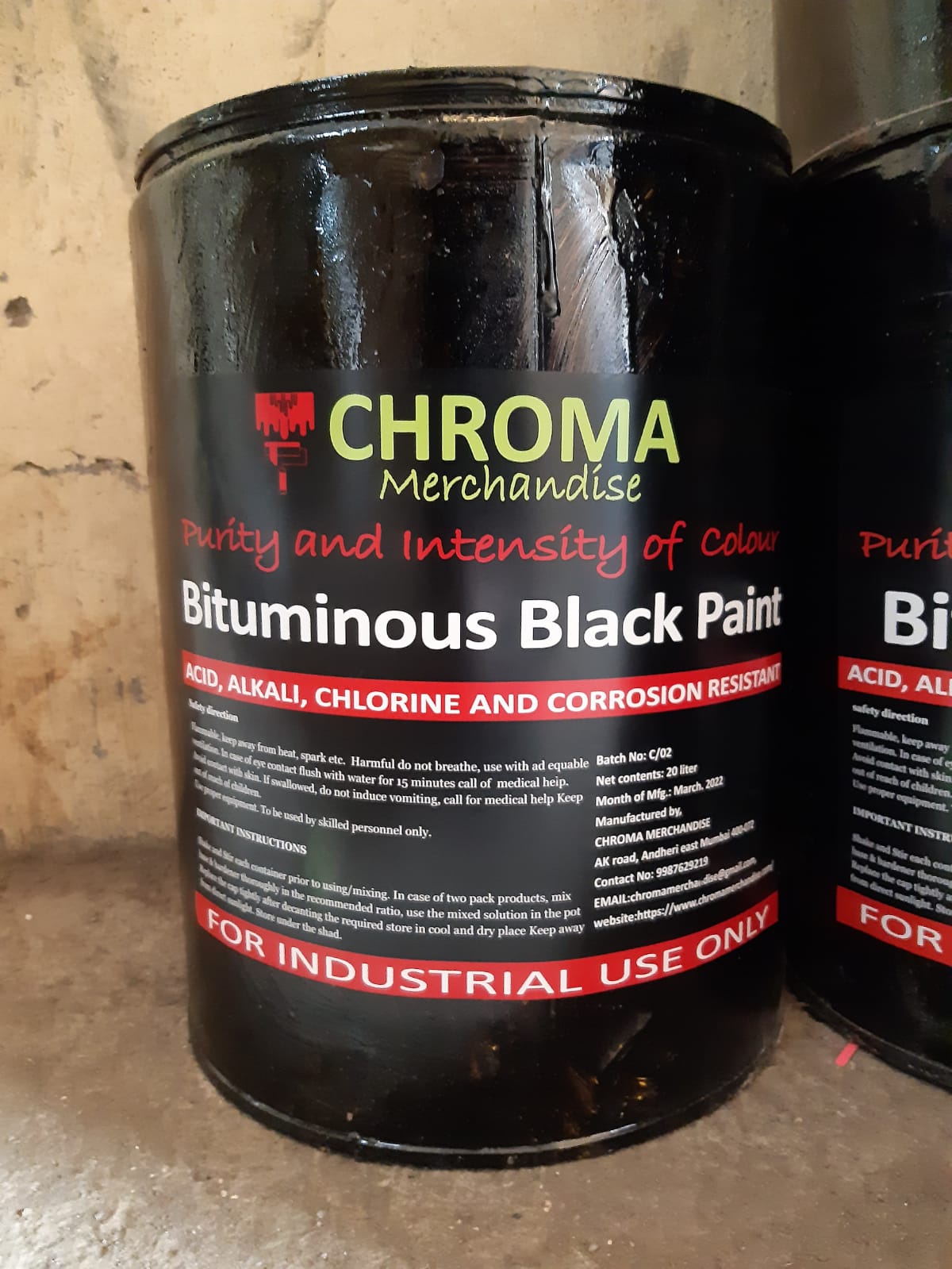

Bituminous Black Paint (TDS)-C

Anti corrosive Bituminous Black Paint is a specially formulated anti-corrosive, waterproof, moisture resistant, for various structural elements. It is also used for concrete foundation. It can also use for other building materials that are exposed to aquatic environment. It is also a versatile coating alternative that can be used both below and above ground.

Technical Data
ColourBlack
Gloss Glossy
recommended DFT / coat2 Coats
Wet film thickness+ 48-50
Theoretical coverage capacity 10.9 sq.mtr/ ltr @ 35 microns DFT
8.5 sq.mtr/ ltr @ 40 microns DFT
Dry film thickness36-38
Drying time at 30°c Touch dry: 30 minutes hard Dry: 1 hour
Specific Gravity1.19
Coverage Area 100-120 sq. F
Curing period Overnight
viscosityThin liquid
Flash pointAbove 32°
over coating interval3 hours
Shelf Life12 months
APPLICATION:
  • : Bituminous paint provides corrosion and waterproofing protection coating to all types of iron, steel, masonry / concrete surfaces footing casting and roof surfaces. It creates a barrier between substructure and superstructure to prevent dampness and capillary action. Prevents reinforcement in RCC and efflorescence in brick work. Application timing: until the concrete strength reaches 70% of specified compressive or structural strength
ADVANTAGES:
  • It is easily applicable by brush/spray gun. It dries rapidly leaving black glossy finish.
  • The resultant film is tough and elastic and does not crack easily due to structural movements.
  • It is resistant to diluted acids and alkali.
Application Methodology:
Surface Preparation
  • Remove all loose gravel, dirt, oil, grease and foreign matter by jet of dry air and clean the surface mechanically or by grinding to make it smooth before application.
Material Preparation
  • Stir the paint by a slow speed mixture (approx. 400 rpm) fitted with a suitable mixing paddle to ensure a homogeneous mix.
  • After stirring, wait for the product to settle in order to let entrapped air escape.
APPLICATION OF MATERIAL
  • • Apply the paint by brush / spray gun or roller on prepared surface.
HEALTH AND SAFETY
  • Avoid contact with skin / eyes and avoid swallowing.
  • Ensure adequate ventilation and avoid inhalation of vapor.
  • Wear suitable protective clothing, gloves and eye protection.
  • In case of skin contact, rinse with plenty of clean water, then cleanse with soap and water. Do not use solvent to clean the contacted area.
  • In case of eye contact, wash with plenty of clean water and seek medical advice.
PACKING:
  • Available in 20kg drum.

Bituminous Black Paint TDS-C is a versatile, protective black coating ideal for metal, concrete, and wood surfaces. Offering exceptional waterproofing and corrosion resistance, this paint creates a durable layer that shields against moisture, weather, and chemical exposure. Perfect for pipes, tanks, structural steel, and exposed concrete surfaces, it’s a reliable solution for enhancing surface longevity and durability.
