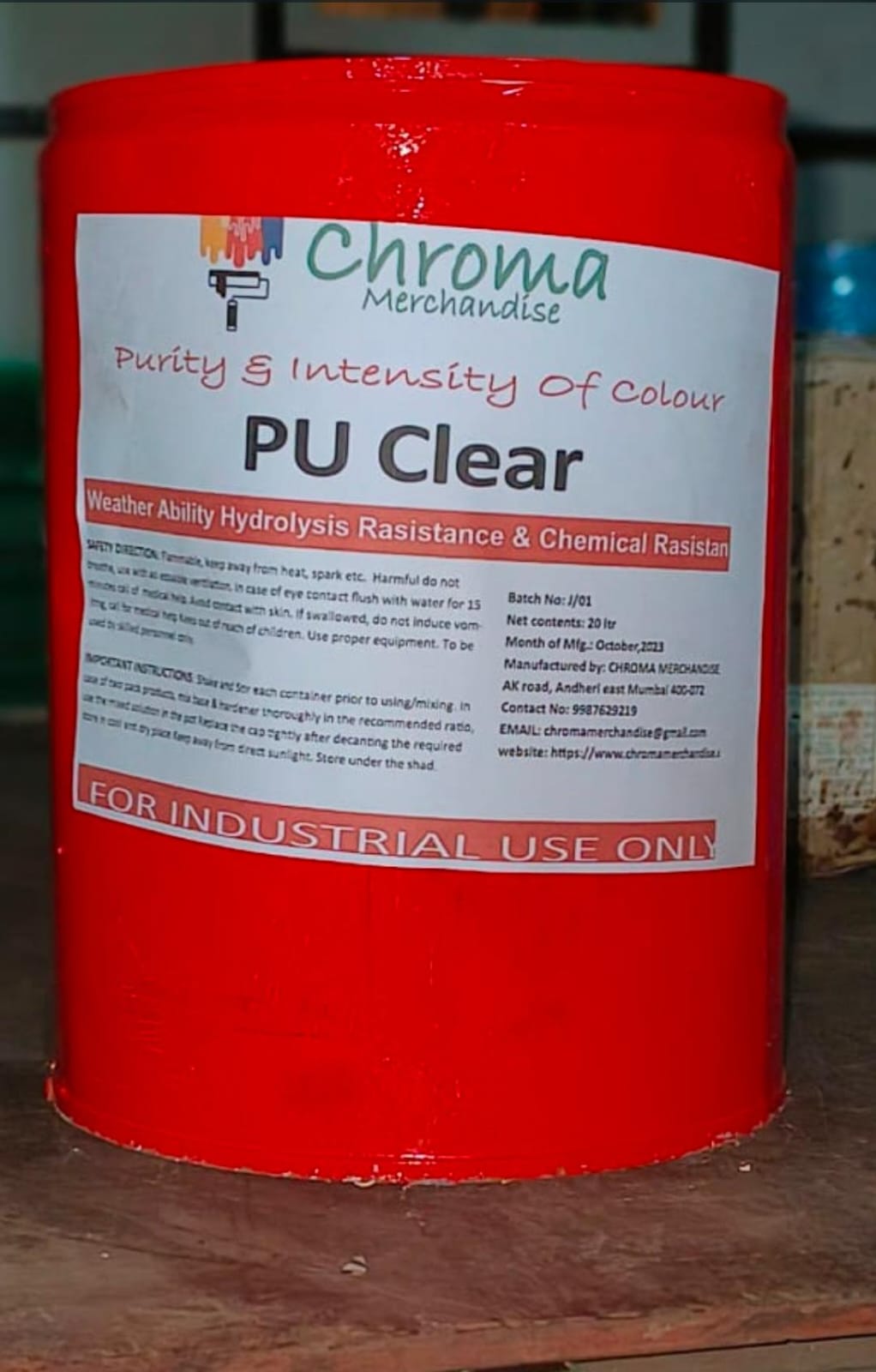

2K PU Clear (TDS)-C

Product description: Quick drying, Two-pack, Lead - Chrome-free 2 Pack Acrylic PU Clear coats for BUS BODY, CHASSIS, etc. Developed for new work and repairs. It is easy to apply and offers excellent Gloss, Aesthetic and Durability

Product and Additives :
  • 2K Acrylic PU Clear Coats.
  • 2K PU Top Coat Hardener
  • Plus Reducer/Thinner– Fast Thinner up to 25 deg C,
  • Slow Thinner above 25 deg C
Colour: Clear Finish: Hi Gloss ( 85-90 at 60 deg gloss head.)

Suitable Substrates:
  • Aluminium surfaces.
  • Mild Steel surfaces.
  • Zinc-coated Galvanised surfaces.
  • FRP laminates
Surface Preparation :
  • Aluminium Surface & Galvanised steel surface: Degrease and Dry sand with P220-P300.
  • Then clean with solvent. Aluminium and galvanised steel must be etch primed before applying.
  • Bare Mild Steel: Degrease and Dry sand with P220-P300.Then clean with solvent.
  • FRP : Degrease and Dry sand with P220-P300. Then clean with solvent.
Application Process:
  • Apply 2-3single coats, allowing a flash –off time of 5 -10 minutes between coats.
  • For better finish final merging coat is always recommended.
Dry Film Thickness:
  • Recommended D.F.T - 35 - 40 micron. D.F.T Build per coat- 15 - 20 micron
Process
MIXING RATIOBASE : HARDENER : THINNER
:: 4 : 1 : 50 % VOLUME BY VOLUME
MIXING : MIXING OF BASE , HARDENER & THINNER WIT MIXING ROD
APPL VISCAPPLICATION VISCOSITY – 18 - 22 SECONDS B4FC AT 30 DEG C
GUN P : GUN PRESSURE : 3-5 BAR (CONVENTIONAL) 2 BAR ( HVLP)
FLASH OFF : APPLY 2-3 COATS, ALLOWING A FLASH OFF TIME OF 5 TO 10 MINUTES BETWEEN COATS
DRYING TIME :Air Drying At 30 Deg C : Dust Free: 30 Mins
Tack Free : 45 Mins
Hard Dry : 8 Hours
Baking Temp:70 -80 Deg C EMT / 30 Mins
POT LIFE :MINIMUM 4 HOURS
RECOAT/DESIGN : CHROMA 2K PU Clear coat can be recoated with CHROMA 2K PU Clear Coat system.
TESTING:
  • All Testing must be done after 72 -96 Hours of Maturation
Material usage:
  • Taking into account a transfer efficiency of 100%, the theoretical material usag (Coverage) for 40 micron D.F.T is 11-12 m²/l ready to spray mixture thinned paint . Note: The practical material usage depends on many factors i.e. shape of the object, Temperature, roughness of the surface, application method and application circumstances.
Cleanliness of the Equipment:
  • With Chroma 2K PU Thinner
Shelf life:
  • CHROMA 2K PU Clear Coat - 1 year
  • Hardener for CHROMA 2K PU Clear coat
Packaging: :
  • 4 lts/1lt pack.
  • HEALTH & SAFETY DATA concerning CHROMA 2K PU Clear coat and Hardener: For professional use only. (See Material Safety Data Sheets)
